Positive News for the (E)PS Industry: EFSA Confirms Styrene Is Not Genotoxic

Positive News for the (E)PS Industry: EFSA Confirms Styrene Is Not Genotoxic

The European Food Safety Authority (EFSA) has determined that styrene is not genotoxic, reinforcing the safety of styrene polymer-based food-contact materials (FCMs). This conclusion follows a comprehensive scientific review requested by the European Commission.

According to EFSA’s Panel on Food Contact Materials, Enzymes, and Processing Aids (CEP), their draft opinion will be available for public consultation on EFSA’s website until 28 January 2025.

The assessment was based on in vivo genotoxicity studies conducted on both animals and humans, including research from the United States, as well as toxicokinetic data. The findings consistently showed no evidence of genotoxic effects from styrene when ingested.

EPS Pre Expansion Process - EPS Beads Manufacturing Process

Expanded Polystyrene (EPS), commonly referred to as Styrofoam, is a widely used material found in everything from protective packaging to building insulation. But how is this lightweight and versatile material created? The key lies in the EPS pre-expansion process, an essential initial step that converts small beads into the foundational components of numerous EPS products.

In this blog post, we’ll explore the EPS pre-expansion process, uncovering the science behind it, the various types of machinery used, and the factors to consider when selecting the right equipment for your specific requirements.

The Science Behind EPS Pre-Expansion

Picture tiny, dense beads – this is the raw material for EPS. These beads contain a hidden ingredient: a blowing agent, typically pentane gas. The EPS pre-expansion process uses heat and pressure to activate this agent, causing it to expand and inflate the beads. This transformation significantly increases the beads' volume while reducing their density, making them ideal for molding into various EPS shapes.

The EPS Pre-Expansion Process: A Step-by-Step Guide

The EPS pre-expansion process turns small, dense beads into the building blocks for a wide range of EPS products. Let’s take a detailed look at each step of this critical stage:

Step 1: Bead Loading (Batch or Continuous)

• Batch Pre-Expanders: A pre-measured batch of EPS beads is manually loaded into the pressure vessel of the pre-expander.

• Continuous Pre-Expanders: A hopper and metering screw continuously feed a controlled amount of EPS beads into the pre-expander chamber.

Step 2: Pre-Steaming (Optional)

• This step, mainly used in batch pre-expansion, involves briefly exposing the beads to low-pressure steam.

• Its purpose is to eliminate any surface moisture on the beads, ensuring uniform heating and preventing bead cracking during the main expansion process.

Step 3: Heating

• Steam or hot air is introduced into the pre-expander chamber.

• The temperature is carefully controlled to activate the blowing agent (pentane gas) within the EPS beads.

• Sensors in the chamber continuously monitor the temperature, and the control system adjusts the heating process as needed.

Step 4: Pressurization

• Once the desired temperature is reached, the pressure inside the chamber is gradually increased.

• This serves two purposes:

  1. It further softens the polystyrene matrix of the beads, allowing for easier expansion.

  2. It helps distribute the pentane gas more evenly within the beads.

• Pressure gauges monitor the internal pressure to ensure it stays within the optimal range.

Step 5: Depressurization

• This is the critical moment where the transformation occurs.

• In a rapid and controlled process, the pressure inside the chamber is drastically reduced.

• This sudden pressure drop causes the pentane gas to expand rapidly.

• As the gas expands, it pushes against the softened polystyrene shell of the bead, causing it to inflate and increase in volume.

• The speed of depressurization is crucial. A rapid depressurization ensures efficient bead expansion and minimizes the risk of incomplete expansion or bead rupture.

Step 6: Cooling

• After depressurization, the pre-expanded beads are quickly cooled.

• This serves two purposes:

  1. It stabilizes the expanded structure of the beads and prevents further expansion.

  2. It prevents the beads from sticking together.

• Cooling is typically achieved using either air or water cooling systems, with air cooling being more common due to its simplicity and lower energy consumption.

Step 7: Discharge

• Batch Pre-Expanders: Once cooled, the pre-expanded beads are manually unloaded from the pressure vessel.

• Continuous Pre-Expanders: A pneumatic conveying system or screw conveyor automatically transfers the pre-expanded beads to a storage silo.

• The silo holds the pre-expanded beads until they are needed for the next stage – molding into various EPS products.

Additional Considerations

• Residence Time: The duration the beads spend in the pre-expander at a specific temperature and pressure affects their final expansion ratio and density.

• Monitoring and Control: Modern pre-expanders are equipped with advanced control systems that monitor pressure, temperature, and other parameters to ensure consistent bead quality.

• Bead Aging (Optional): In some applications, the pre-expanded beads may undergo an aging process before molding. This allows the remaining pentane gas to diffuse further and be replaced by air, enhancing the dimensional stability of the beads for molding.

By understanding these detailed steps, you gain valuable insight into the intricate process of EPS pre-expansion. This knowledge empowers you to appreciate the importance of selecting the right pre-expander with features that can deliver the specific bead characteristics required for your EPS production needs.

Production of PU Foam Batch Foam Plant Vs Continue Foam Plant

The production of Polyurethane (PU) foam can be carried out using two primary methods: Batch Foam Plants and Continuous Foam Plants. Each method has its own advantages, disadvantages, and applications. Below is a comparison of the two:

1. Batch Foam Plant

• Process: In a batch foam plant, PU foam is produced in discrete batches. The raw materials (polyol, isocyanate, catalysts, blowing agents, etc.) are mixed in a specific ratio and poured into a mold or open container. The mixture then reacts and expands to form foam.

• Output: Limited to the size of the batch and the mold used.

• Flexibility: High flexibility in producing different types of foam (varying densities, shapes, and sizes) by changing the mold or formulation.

• Applications: Ideal for small-scale production, custom orders, or specialized foam products (e.g., mattresses, cushions, automotive parts).

• Advantages:

  • Lower initial investment cost.

  • Easier to switch between different foam formulations.

  • Suitable for low to medium production volumes.

• Disadvantages:

  • Slower production rate compared to continuous plants.

  • Higher labor intensity.

  • Inconsistent quality if not carefully controlled.

---

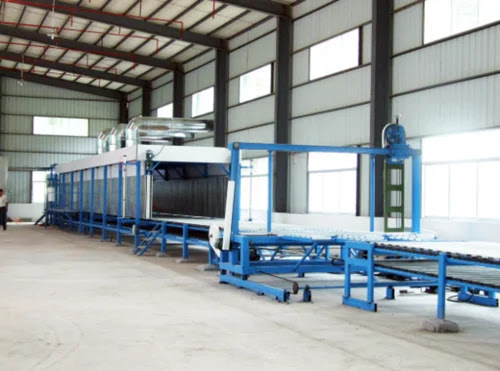

2. Continuous Foam Plant

• Process: In a continuous foam plant, the raw materials are continuously mixed and dispensed onto a conveyor belt or moving surface. The foam rises and cures as it moves along the conveyor, forming a continuous block or slab.

• Output: High-volume production with consistent quality.

• Flexibility: Limited flexibility in terms of changing formulations or foam types during production.

• Applications: Ideal for large-scale production of standard foam products (e.g., mattress foam, insulation panels, packaging foam).

• Advantages:

  • High production capacity.

  • Consistent quality and uniformity.

  • Lower labor costs due to automation.

• Disadvantages:

• High initial investment cost.

• Less suitable for small-scale or customized production.

• Requires precise control of raw material flow and process parameters.

Key Differences

Aspect	Batch Foam Plant	Continuous Foam Plant
Production Volume	Low to medium	High
Flexibility	High (easy to change formulations)	Low (designed for specific formulations)
Initial Investment	Lower	Higher
Labor Intensity	Higher	Lower
Output Consistency	May vary between batches	Highly consistent
Applications	Custom, specialized products	Standard, high-volume products

Choosing Between Batch and Continuous Foam Plants

• Batch Foam Plants are better suited for manufacturers who need flexibility, produce smaller quantities, or cater to niche markets.

• Continuous Foam Plants are ideal for large-scale manufacturers who require high output and consistent quality for standardized products.

The choice depends on factors such as production volume, product variety, budget, and market demand.

For All Your Flexible PU Foam Needs – Contact Us!

If you're looking for high-quality Flexible PU Foam, custom PU Foam blocks, expert consultation on PU Foam Plants, raw materials, production processes, and manpower solutions & services, we’ve got you covered. Our team specializes in providing durable, lightweight, and cost-effective PU Foam solutions tailored to your requirements.

📞 Reach out to us today for inquiries, quotes, or consultations!
📧 Email: saras.foam@gmail.com
📍 Address: Saraswati Foam

Babail Road, Chottu Ram Chowk, Panipat, Haryana

+919215882111 – Mr Vinod Goyal

Moisture in EPS beans as a filler in Poufs, Bean Bags, and other Cushioned Furniture.



Moisture in EPS (Expanded Polystyrene) beans can significantly impact their performance as a filler in poufs, bean bags, and other cushioned furniture. Here’s what you need to consider:

Effects of Moisture in EPS Beans:

1. Loss of Buoyancy & Comfort – EPS beads are lightweight and designed to provide cushioning. Moisture can cause them to stick together, reducing their ability to move freely and distribute weight evenly.

2. Mold & Mildew Growth – If the moisture content is high, especially in humid environments, it can lead to mold or mildew, affecting hygiene and durability. It can also create fungus in the poufs.

3. Compression & Shrinkage – Wet beads may clump together and lose volume over time, reducing the pouf’s lifespan and requiring frequent refills.

4. Increased Weight – Moisture absorption makes the pouf heavier, affecting portability and ease of use.

5. Pricing of Poufs - If the moisture in the EPS in high it will increase the cost of EPS due to low weight of EPS and high weight of moisture.



Recommended Moisture Levels:

Ideally, EPS beads should have a moisture content below 1% to maintain their properties.

Proper drying and storage before filling the poufs is essential.

Preventing Moisture Issues in Poufs:

1. Use a Waterproof or Moisture-Resistant Liner – Helps prevent absorption of external humidity.

2. Ensure Proper Storage – Keep EPS beads in a dry, sealed container before use.

3. Dry EPS Beads if Needed – If beads are suspected to have absorbed moisture, they can be dried using low heat or in a well-ventilated area.

4. Choose High-Quality EPS Beads – Virgin or high-quality recycled beads are less likely to absorb moisture than lower-quality alternatives.



Would you like specific drying techniques or testing methods for moisture in EPS?
